Turbocharger

Tianli Turbo Technology (DBA Marine Turbo) is proud to manufacture the world’s most efficient large frame turbochargers, the range from 90kw to 2000kw. Our commitment to the development and production of premium turbo-machinery technology has focused demand for this superior product, and there are now more GP Turbochargers being installed in heavy engine applications around the globe than ever before.

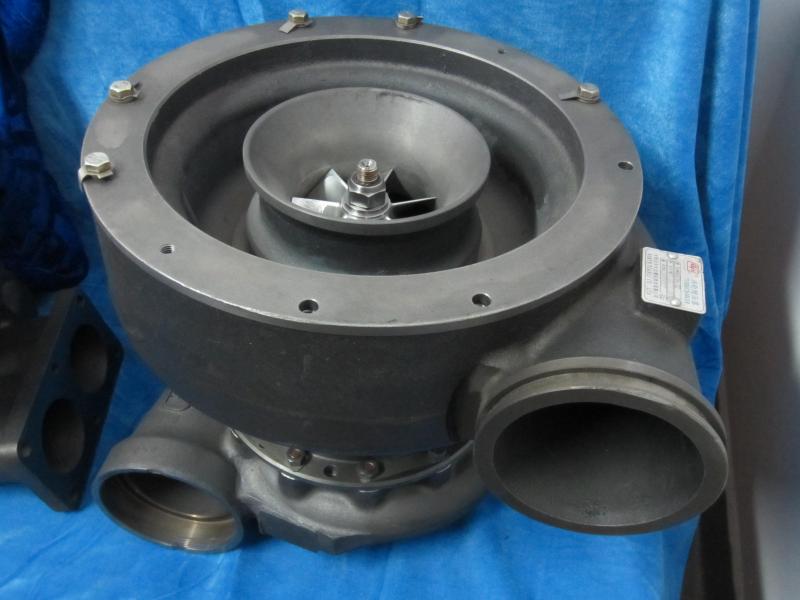

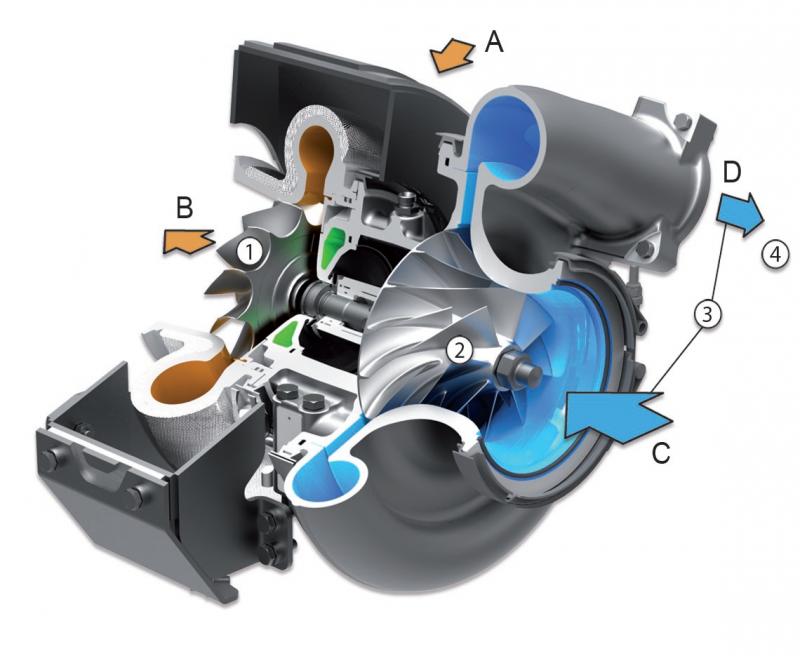

1. Replacement Turbocharger For MTU ZR140 and ZR170

Engine Model	Turbo Model	Turbo Assembly No.	Engine	Power/RPM
MTU396	ZR170/TE54	511 020 87 07 (left) 511 020 88 07 (Right)	16V396TE54	1380kw/1500rpm
MTU396	ZR170/SE84	511 020 09 08 (left) 511 020 10 08 (Right)	16V396SE84	1000kw/1800rpm
MTU396	ZR170/067	511 020 71 07 (left) 511 020 74 07 (Right)	16V396TE94	2040kw/1870rpm
MTU396	ZR140/23	510 020 62 00 (left) 510 020 63 00 (Right)	8V396	680kw/1500rpm
MTU396	ZR140/24	510 020 40 05 (left) 510 020 41 05 (Right)	12V396	1030kw/1500rpm
MTU396	ZR170/068	511 020 68 07	16V396TE94	2400kw/5000rpm

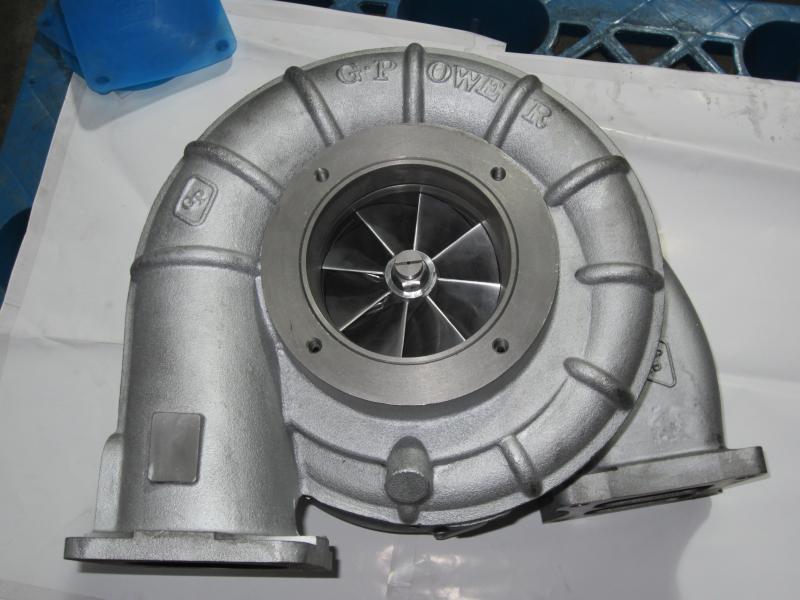

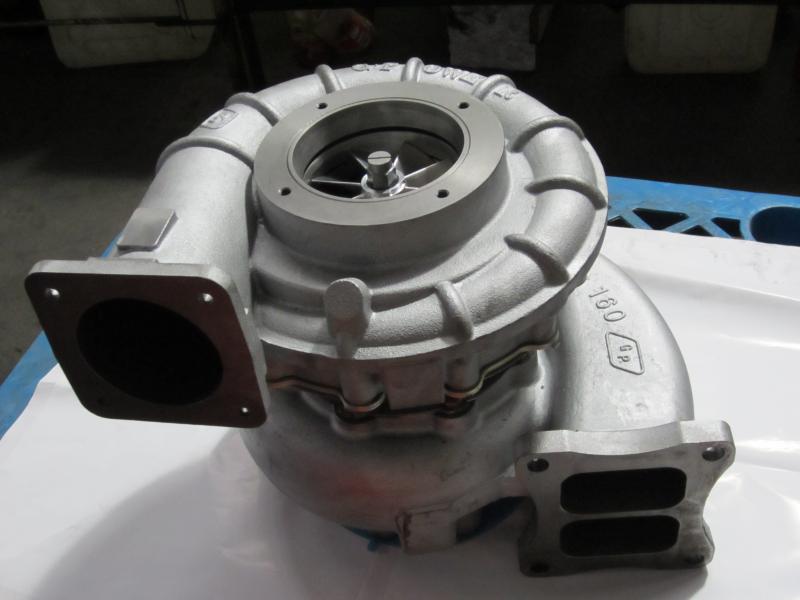

2. Replacement Turbocharger For RR131, 151, 181 and 221


Compressor wheel inducer	Turbine wheel exducer	Engine power
151mm	137mm and 144mm	350kw-650kw
155mm		450kw-750kw
165mm		500kw-900kw
175mm		700kw-1000kw

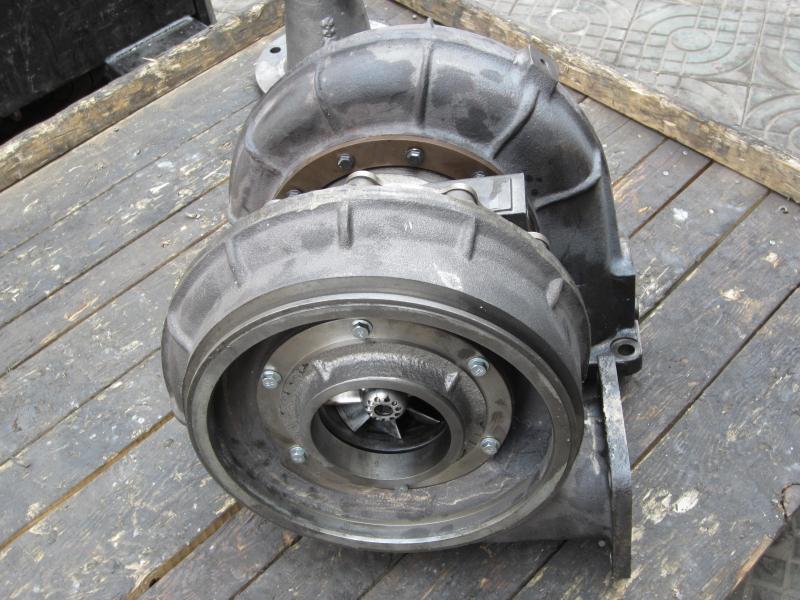

3. Replacement Turbocharger For TPS44, 48, 52 and 57

Compressor wheel inducer	Turbine wheel exducer	Engine power
200mm	137mm and 144mm	350kw-650kw
230mm		450kw-750kw
165mm		500kw-900kw
175mm		700kw-1000kw

4. VTR Replacement Turbocharger

VTR 201 VTR251

Note:	All brand names, trade names,logos and symbols are for reference purposes only,do not imply any association with their holder.
	All part numbers and model are also for reference only and in no way imply that they are products manufactured by the associated companies.
